| Mechanicals: | 21.25x15.90x13.40mm | Insulation Resistance: | 1000 Megohms Min @ 500 Vdc |
|---|---|---|---|
| Cross Part Number: | ARJM11D7-811-NN-CW4 | Orientation: | Top Entry |
| Spec: | ARJC02-111006K | Operatingtemperaturerange: | -40°C To 85°C |
| Data Rate: | 10/100 Base-T | Material: | PBT PA66 PA46 |
| 강조하다: | Through-hole mount RJ45 connector,RJ45 modular plug for THT assembly,Stable data communication RJ45 connector |
||

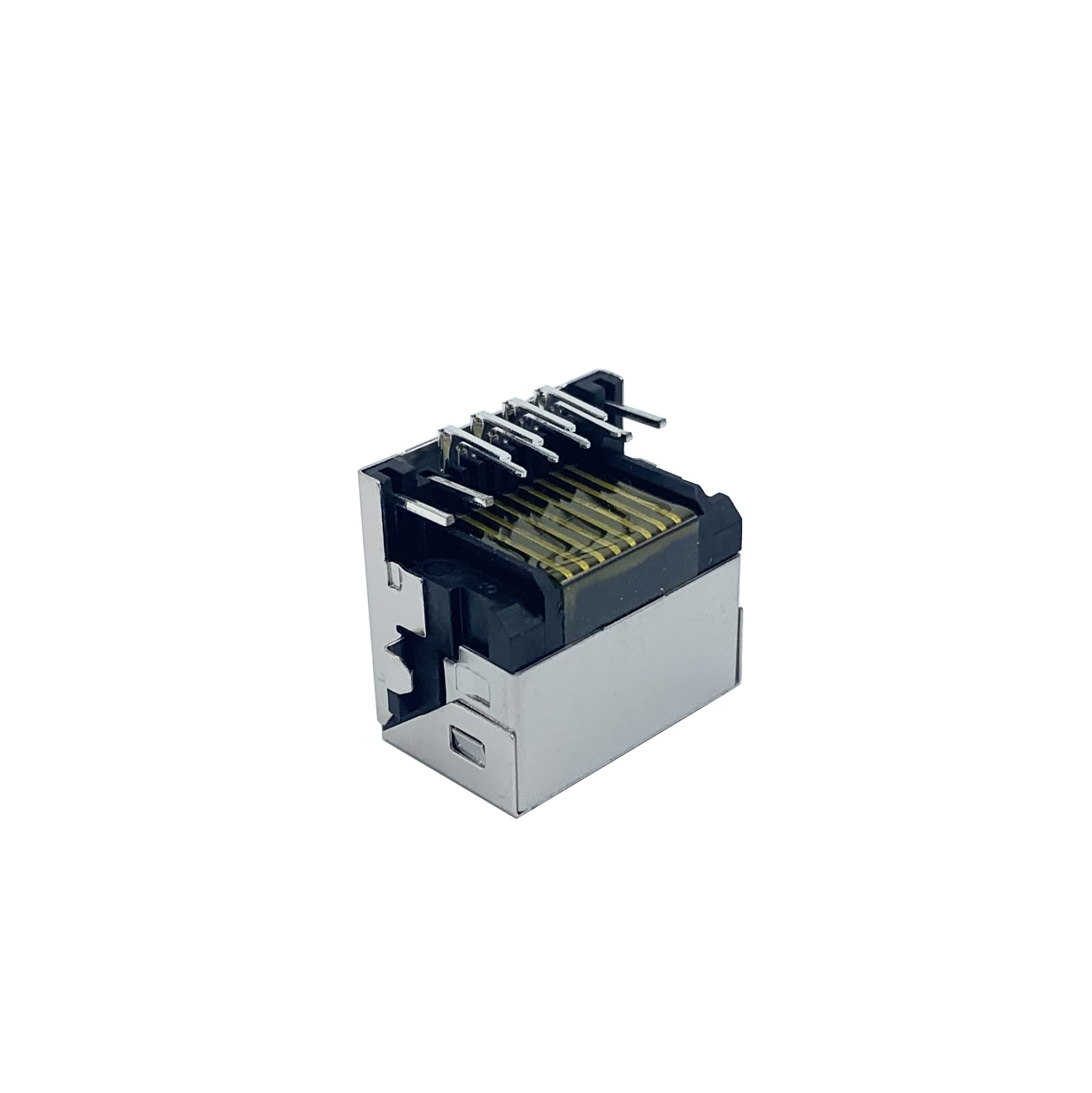

The RJ45 Modular Jack, model ARJC02-111006K, is a high-quality RJ45 Data Jack designed specifically for use in server environments. This RJ45 Network Connector is engineered to meet the demanding requirements of modern data communication systems, providing reliable and efficient connectivity for various networking applications.
With a compact mechanical size of 21.25x15.90x13.40mm, this RJ45 Data Jack is ideally suited for integration into server hardware, ensuring seamless network connections without compromising on space or performance.
One of the most notable features is its strict adherence to industry standards, specifically the TIA/EIA-568-B standard. Compliance guarantees that the connector supports structured cabling systems and offers optimal performance in terms of signal integrity and transmission speed.
This RJ45 Data Jack boasts an impressive operating temperature range of -40°C to 85°C, making it highly reliable in various environmental conditions, including demanding server rooms and data centers.
Designed with the specific needs of servers in mind, the ARJC02-111006K provides excellent electrical performance and mechanical reliability, supporting high-frequency data transmission for gigabit and faster Ethernet networks.
| Material | PBT, PA66, PA46 |
|---|---|
| Usage | For Servers |
| Mount | Through-hole (THT) |
| Type | DIP / Side Entry |
| Operating Temperature Range | -40°C To 85°C |
| Orientation | Top Entry |
| Insulation Resistance | 1000 Megohms Min @ 500 Vdc |
| Mechanicals (Dimensions) | 21.25 x 15.90 x 13.40 mm |
| Mounting | THT |
| Standards Compliance | TIA/EIA-568-B |
The RJ45 Modular Jack is an essential component widely used in various networking applications due to its reliable performance and versatile mounting options. Featuring a through-hole mount design, this connector ensures a secure and stable connection on printed circuit boards, making it ideal for robust network hardware assemblies.
Designed with a top entry orientation, the RJ45 Modular Plug offers convenient cable insertion and extraction, enhancing ease of installation and maintenance. The connector supports data rates of 10/100 Base-T, making it suitable for Fast Ethernet applications.
Constructed from high-quality materials such as PBT, PA66, and PA46, the Modular Plug Connector provides excellent durability, heat resistance, and mechanical strength for demanding industrial environments.
The RJ45 Modular Jack is commonly employed in office networking equipment, telecommunications systems, consumer electronics, routers, switches, network interface cards, patch panels, industrial automation systems, and smart home devices.
