| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | PHC |
| 인증: | ROHS，REACH |
| 최소 주문 수량: | 1000 |
| 가격: | $20/10pcs for sample |
| 지불 조건: | l/c, t/t, d/a, d/p |
| 공급 능력: | 10000pcs/1 주일 |
| 내수성 수준: | IP67 | 재료: | 높은 금도금 형광체 청동 |
|---|---|---|---|
| 성능: | SGS | 지시자: | 없이 |
| 작업 온도: | -20 ℃ ~ 75 ℃ | 제품 유형: | RJ45 랜 변압기 |
| 터미널 인터페이스: | RJ45/RJ11/RJ48 | 재료: | PBT, PA46, PVC |
| 패널 두께: | ≤4mm | 절연 저항: | 1000mΩΩ |
| 접촉 저항: | 40mΩ Ω | ||
| 강조하다: | RJ45 waterproof connector,industrial RJ11 modular jack,RJ48 waterproof modular connector |
||
Product and Electrical Parameters

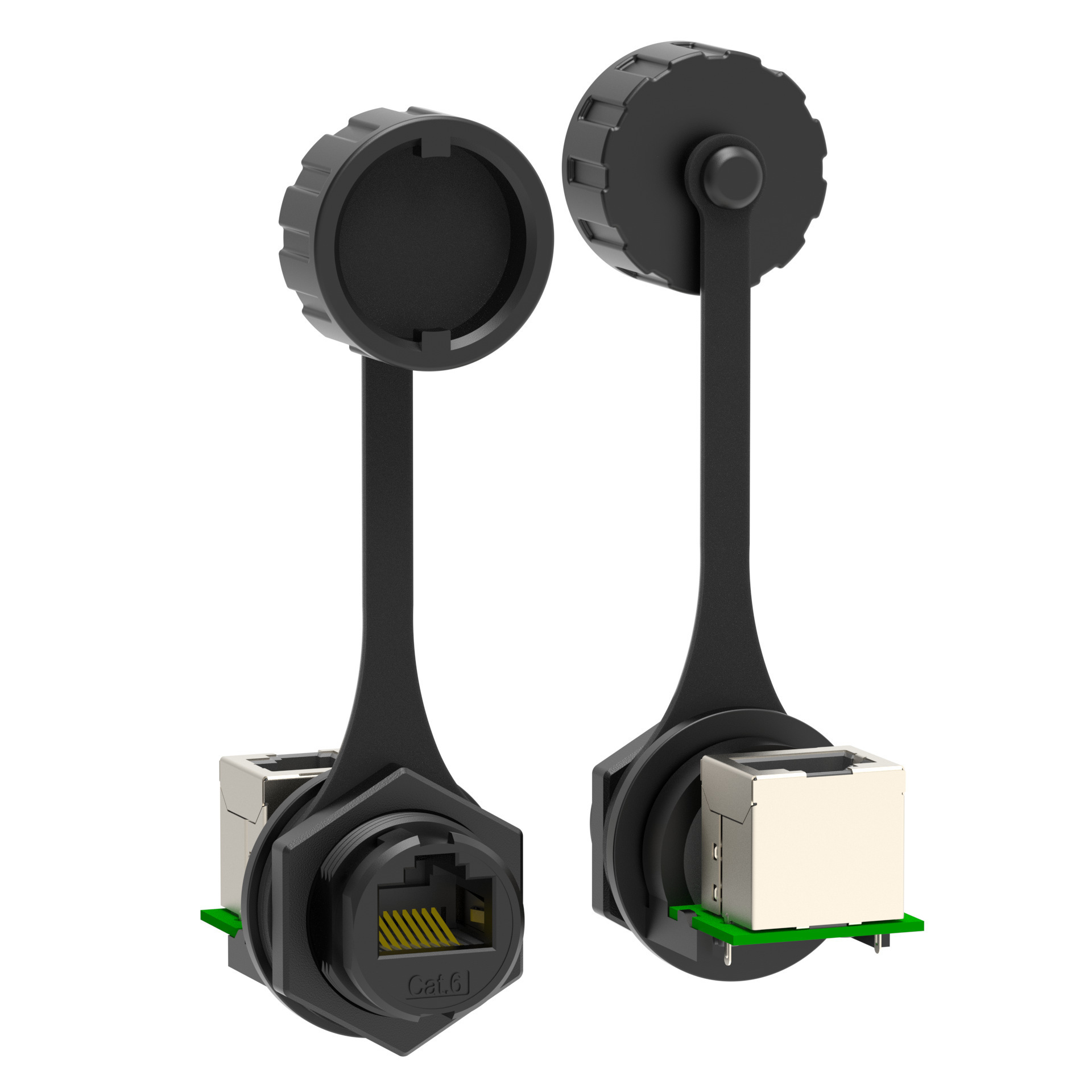

Name:RJ11/45/48 Industrial Waterproof Connector
Material: High-quality flame-retardant PA66
Terminal: Phosphor bronze contact with heavy gold plating
Interface: RJ11/45/48
Performance:Complies with standards, passed SGS testing
Operating
Temperature:** -20°C to +75°C
Flame Rating: UL94-V0
Installation Method:Panel mount (with locking mechanism)
Panel Thickness: ≤ 4 mm
Rated Voltage:125 VAC
Ingress Protection (IP) Rating:IP67
Durability (Mating Cycles): ≥ 1000 cycles
Withstanding Voltage:1000 V AC
Insulation Resistance:1000 MΩ
